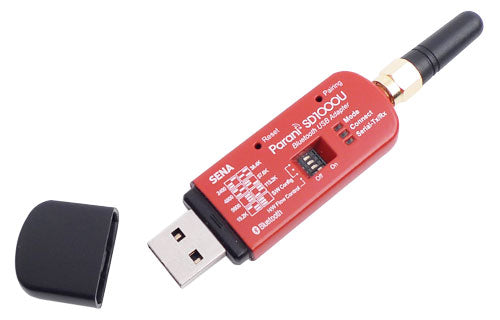

Parani-SD1000U Bluetooth USB Adapter for Serial Port replacement

Parani-SD1000U Bluetooth USB Adapter for Serial Port replacement

Part #:SD1000U-G01

$115.00 USD
$115.00 USD
Sale Sold out
Shipping calculated at checkout.

Parani-SD1000U Bluetooth USB Adapter for Serial Port replacement

View full details
  • Product Description
  • Technical Specifications
  • What's Included
  • Downloads

The Parani-SD1000U is a class 1 type Bluetooth USB adapter for Serial Port Replacement that supports 300 meters of wireless transmission distance by default. The working distance can be further extended up to 1000 meters using optional antenna can be replaceable.
It is suitable for industrial and special applications because it can cover longer communicaiton distance (1000m) over other regular Bluetooth USB adapter accessories.

  • Bluetooth Specification v2.0 + EDR Class 1
  • Working distance (In an open field): Normally 300 meters, up to 1000m using patch antenna
  • USB 2.0 interface
  • Supports Windows, Linux, Mac OS and Windows CE.NET operating systems.
  • No Bluetooth driver required. (No Toshiba or BlueSoleil driver required.)
  • Provides transparent RS232 serial cable replacement for PC
  • Supports Bluetooth Serial Port Profile (SPP)
  • Supports up to 4 multiple simultaneous connections
  • Interoperability with laptops, PDA terminals etc.
  • Easy to use Windows configuration tool available.
  • Standards:
  • Bluetooth 2.0+EDR Class 1
  • USB 2.0

  • Max Transfer Rate: 3 Mbps (EDR)
  • Frequency Range: 2.402 ~ 2.480GHz
  • Transmit Output Power: +18dBm
  • Receive Sensitivity:
  • Basic 1Mbps: -90dBm
  • EDR 2Mbps: -88dBm
  • EDR 3Mbps: -87dBm

  • Diagnostic LED:
  • Mode
  • Connect
  • Serial-Rx/Tx

  • Antenna Connector: RP-SMA
  • Antenna Gain:
  • Default Stub Antenna: 1 dBi
  • Optional Dipole Antennas: 3 dBi & 5 dBi
  • Optional Patch Antenna: 9 dBi

  • Working Distance (In Open Field):
  • Stub Antenna – Stub Antenna – 300 meters
  • Dipole Antenna (3 dBi) – Dipole Antenna (3 dBi) – 400 meters
  • Dipole Antenna (5 dBi) – Dipole Antenna (5 dBi) – 600 meters
  • Patch Antenna – Patch Antenna – 1,000 meters

  • Supported Bluetooth Profiles: Serial Port Profile (SPP)

  • Computer OS Support:
  • Windows 10, 8.1, 8.1 x64, 8, 8 x64, 7, 7 x64, Vista, Vista x64 XP, XP x64, ME, 98
  • Windows Server 2003/2008/2012 (and x64 versions)
  • Windows CE.NET (4.2+)
  • Linux, Android, Windows RT
  • Mac OS 8, 9, X
  • Linux, Android, Windows RT

  • Environmental:
  • Operating Temperature: -40˚C ~ +85˚C
  • Storage Temperature: -40˚C ~ +85˚C
  • Humidity: 90% Non-condensing

  • Physical Properties:
  • Dimension (L×W×H):
  • 68×22×11.5 mm (2.6×0.8×0.4 in) without cap
  • 71×22×11.5 mm (2.7×0.8×0.4 in) with cap
  • 97×22×11.5 mm (3.8×0.8×0.4 in) with cap & 1 dBi stub
  • Weight: 56 g

  • Regulatory Approvals: FCC, CE, TELEC, KCC, IC, Bluetooth SIG
  • Warranty: 1 year limited warranty

Includes:

  • Parani-SD1000U
  • Stub antenna
  • Quick Start Guide
  • CD-ROM including Driver, User guide and Data sheet

Datasheet

Agency Approvals

Firmware
