Sena Networks

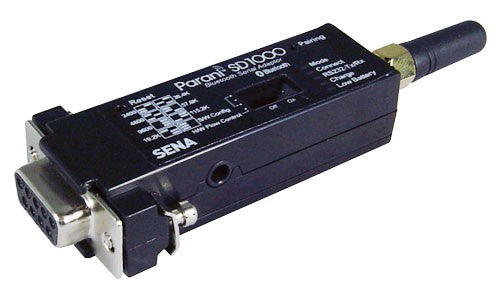

Parani-SD1000 Bluetooth-Serial Adapter w/o Power Adapter 10 unit bulk pack

Parani-SD1000 Bluetooth-Serial Adapter w/o Power Adapter 10 unit bulk pack

Part #:SD1000-B10

$949.00 USD
$949.00 USD
Sale Sold out
Shipping calculated at checkout.

Parani-SD1000 Bluetooth-Serial Adapter w/o Power Adapter 10 unit bulk pack

View full details
  • Product Description
  • Technical Specifications
  • What's Included
  • Downloads

The Parani-SD1000 is a Class1 type of Bluetooth Serial Adapter that supports 100 meters of wireless transmit distance by default. The Parani-SD1000 has an extension option so that users can extend the transmit distance up to 1000 meters using optional antennas. It supports Bluetooth v2.0+EDR specification. Parani-SD1000 has two battery-pack options, standard and extended battery pack. By these options, Parani-SD1000’s portability is more enhanced. The Parani-SD1000 also supports up to 4 multiple simultaneous connections.

  • Bluetooth Specification v2.0 + EDR
  • Provides transparent RS232 serial cable replacement
  • Supports up to 4 multiple simultaneous connections
  • Basic Transmit Power : Max. +18dBm, EDR Transmit Power : Max. +6dBm
  • Receiving Sensitivity : -88dBm(0.1%BER)
  • Supports Bluetooth profiles SPP(Serial Port Profile)
  • Interoperability with PDA, laptops etc.
  • Supports firmware upgrade via windows-based software(ParaniUpdater)
  • Working distance ( In an open field ) : Nom. 100 meters, up to 1000m using patch antenna
  • Enhanced portability : standard & extended battery pack options
  • Easy to use Windows configuration tool available.
  • No external drivers required.
  • Serial Interface
  • Serial speed up to 921.6kbps
  • CTS/RTS flow control, DTR/DSR for loop-back & full transfer

  • Bluetooth Interface
  • Bluetooth v2.0 + EDR
  • Class 1
  • Profile: SPP

  • Working distance (in open field):
  • SAT-G01R to SAT-G01R: 100 meters
  • SAT-G01R to DAT-G01R: 150 meters
  • DAT-G01R to DAT-G01R: 200 meters
  • DAT-G01R to DAT5-G01R: 300 meters
  • DAT-G01R to PAT-G01R: 500 meters
  • DAT5-G01R to DAT5-G01R: 400 meters
  • DAT5-G01R to PAT-G01R: 600 meters
  • PAT-G01R to PAT-G01R: 1,000 meters

  • Antennas:
  • SAT-G01R: +1dBi Stub Antenna
  • DAT-G01R: +3dBi Dipole Antenna
  • DAT5-G01R: +5dBi Dipole Antenna
  • PAT-G01R: +9dBi Patch Antenna

  • Max. Tx Power: +18dBm
  • Receive Sensitivity: -88dBm
  • Antenna Gain: Stub: +1dBi, Dipole: +3dBi / +5dBi, Patch: +9dBi
  • Configuration:
  • ParaniWin, ParaniUpdater
  • Modem AT command set

  • Diagnostic LED:
  • BT Status (mode)
  • Connect
  • RS232-RX/TX
  • Charging/Done
  • Low Battery

  • Power:
  • Input: 5~12VDC
  • Consumption: 2mA (min), 80mA (max)
  • Common Power Supply Options:
  • Standard AC-plug DC adapter
  • USB power cable
  • DC power cable
  • Pin 9 of DB9 connector
  • Battery Pack (Standard & Extended)

  • Environmental:
  • Operating Temp: -40°C to 85°C
  • Storage Temp: -40°C to 85°C
  • Humidity: 90% non-condensing

  • Physical Properties:
  • Dimensions (L×W×H):
  • No battery: 76×31×16 mm
  • With standard battery: 76×31×19.5 mm
  • With extended battery: 76×31×31.4 mm
  • Weight:
  • No battery: 24g
  • With standard battery: 30g
  • With extended battery: 42g

  • Battery:
  • Capacity: 240mAh (standard), 900mAh (extended)
  • Charging Power: Minimum 5V/200mA
  • Charging Time: ~2 hours (standard), ~5 hours (extended)
  • Test based on 9600 bps data loopback. Actual battery life varies by configuration, operating conditions and other factors
  • Battery Life (at 9600bps loopback):
  • ~4.5 hours (standard)
  • ~16.5 hours (extended)

  • Regulatory Approvals: FCC(A), CE, MIC, TELEC, SIG, IC
  • Warranty: 3-year Limited Warranty

Includes:

  • SD1000( x 10EA) : SD1000 Bluetooth-serial adapter
  • SAT-G01R( x 10EA) : 1 dBi Stub Antenna - RP-SMA Plug Right-hand Thread
  • DPA-G01( x 10EA) : Parani-DPA DC power cable for SD series
