Sena Networks

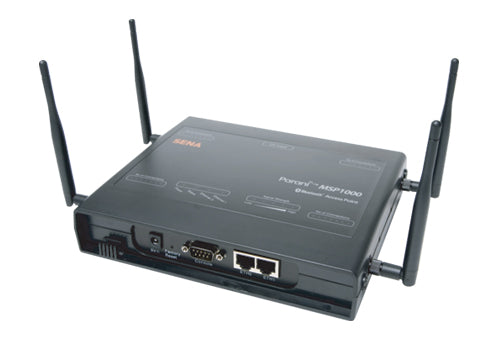

Parani-MSP1000 Industrial Bluetooth Access Point with 28 connections support

Parani-MSP1000 Industrial Bluetooth Access Point with 28 connections support

SKU: Part #:MSP1000C-01

Regular price $1,360.00 USD
Regular price Sale price $1,360.00 USD
Sale Sold out
Shipping calculated at checkout.

Parani-MSP1000 Industrial Bluetooth Access Point with 28 connections support

View full details
  • Product Description
  • Technical Specifications
  • What's Included
  • Downloads

The Parani-MSP1000 is an Industrial Bluetooth Access Point product line designed to connect Bluetooth devices to the 10/100 Base-T Ethernet network with advanced features. These Bluetooth Access Points transmit data from each Bluetooth terminal to management station via TCP/IP.

Available in 7, 14, and 28 Bluetooth connection models, the Parani-MSP1000 Bluetooth Access Point product line incorporates Bluetooth 2.0 Protocol Stack with Enhanced Data Rate (EDR) support; and transmits data from each Bluetooth terminal to management station via TCP/IP.

These units’ support profiles including Serial port, LAN access, PAN and FTP profiles to keep Bluetooth devices interoperating smoothly and easily.

  • Connects Bluetooth devices to 10/100 base-T Ethernet.
  • Dual Ethernet Interface support
  • Supports Up to 3Mbps throughput
  • Ideal wireless solution for the replacement of the wired multi-port serial card.
  • 7/14/28 Bluetooth Connections support
  • Supports Bluetooth profiles for Serial Port, LAN Access, PAN, File Transfer and Dial up Networking.
  • Easy-to-use COM-Port redirector support
  • Flexible TCP/UDP host mode support: Multiple host connection/data transfer
  • System logging & port logging
  • Supports Python Script Engine for customization
  • Supports firmware upgrade via web, hyper terminal program or etc.
  • Supports surge protector
  • Supports RFC 2217, Telnet COM Port Control Protocol.
  • CPU: Freescale PowerQUICC MPC880
  • DRAM: 64 MB
  • Flash: 16 MB (2 MB of user programmable space)

  • Ethernet Interface:
  • Dual 10/100 Base-T Ethernet with RJ45 connector
  • Supports Static IP and Dynamic IP address

  • Bluetooth Interface:
  • Bluetooth v2.0 + EDR
  • Class 1
  • Profiles - Serial Port, LAN Access, PAN, Dial up Networking, File Transfer
  • Data Rate - up to 3Mbps
  • Working Distance:
  • Parani-MSP1000 - Parani-SD100/Parani-ESD110
  • DAT-G01R Antenna - Stub (Default) Antenna: up to 150m
  • DAT-G01R Antenna - DAT-G01R Antenna: up to 200m
  • DAT-G01R Antenna - DAT5-G01R Antenna: up to 300m
  • DAT-G01R Antenna - PAT-G01R Antenna: up to 500m
  • DAT5-G01R Antenna - DAT5-G01R Antenna: up to 400m
  • DAT5-G01R Antenna - PAT-G01R Antenna: up to 600m
  • PAT-G01R Antenna - PAT-G01R Antenna: up to 1000m

  • Max. Tx power: +17dBi (using DAT-G01R Antenna)
  • Receive Sensitivity: -88dBm
  • Antenna Gain: DAT-G01R(Default): +3dBi, DAT5-G01R: +5dBi, PAT-G01R: +9dBi
  • Point to Multi-Point Connectivity: Up to 28 connections
  • Network Protocols:
  • IPv4, ICMP, ARP, TCP, HTTP, telnet, TFTP
  • SSH, HTTPS, SSL/TLS, DNS
  • SCP/SFTP/FTP, syslog, NTP
  • SMTP, Dynamic DNS

  • Security:
  • IP Filtering
  • SSH v2, SSL/TLS, HTTPS, SCP, SFTP

  • CF Port: Flash memory
  • Logging: Syslog server, CF memory
  • Real Time Clock: Support
  • Customization: Python Script engine, ELDK v4.0, 2MB internal user space
  • Management: Web, Telnet, SSH, Serial Console
  • Firmware: Upgrade using Telnet/SSH, Web, Bootp, Zmodem, TFTP
  • Diagnostic LED:
  • POWER, STATUS, Ethernet0, Ethernet1
  • Signal Strength, No of Connections

  • Power:
  • 5VDC
  • Nominal Current Consumption: 1.2A @ 5VDC approximately

  • Environmental:
  • Operating temperature: 0°C to 50°C
  • Storage temperature: -30°C to 85°C
  • Humidity: 90% Non-condensing

  • Physical Properties:
  • Dimension (LxWxH)
  • 203 x 170 x 44 (mm),
  • 7.99 x 6.69 x 1.73 (in.)
  • Weight:
  • MSP1000A: 1414g
  • MSP1000B: 1432g
  • MSP1000C: 1468g

  • MTBF: 30.52 Years
  • Approval: FCC, CE, MIC, Telec
  • Warranty: 3-year Limited Warranty

Includes:

  • DC Power Adapter
  • DAT-G01R Antenna: 3 dBi Dipole Antenna-RP-SMA-Reverse right-hand thread
  • Serial data cable
  • Ethernet straight cable
  • wall mount bracket
  • Quick Start Guide
