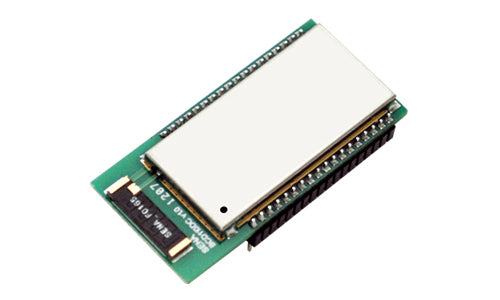

The Parani-BCD110 is a Bluetooth Class 1 OEM module for OEM manufacturers who want to implement Bluetooth Class 1 functionality with their products cost effectively and also in timely manner.
The BCD110 supports Class 1 Bluetooth transmission level for longer communication distance typically ranges from 200 m up to 1 km. The BCD110 supports UART, USB, PCM, PIO interfaces for the communication with the OEM products.
The BCD110 supports Bluetooth v2.0+EDR, SPP (Serial Port Profile), Sena I/O profile, SCO connections, and digital I/O with up to 7 simultaneous multiple connections.
It is designed to work out-of-box for real world SPP applications such as POS (Point-of-sales), industrial automation, remote metering and other various applications. Optionally, the BCD110 can be supplied with only software stack up to HCI level so entire Bluetooth stack runs on the host side for the application such as USB dongles for computers, or OEM manufacturers can even develop and embed their own firmware into the BCD110.
The BCD110 is fully qualified with Bluetooth v.2.0+EDR specification, therefore OEM manufacturers can save cost and time for overall OEM product certifications, which makes the BCD110 an ideal solution for larger volume and cost sensitive applications.
- Bluetooth Class 1
- Bluetooth v2.0+EDR specification
- Transmit Power: +18dBm Typical
- Receive sensitivity: -90dBm (0.1% BER)
- Integrated 8Mbit Flash Memory
- Supports Serial Port Profile (SPP), Sena I/O Profile, SCO Connection
- Working distance (In an open field): Nom.200m, up to 1000m
- Supports built-in chip, stub and dipole antennas
- Standard HCI over UART or USB
- BCD110 firmware supporting up to 7 simultaneous multiple connections
- Firmware upgrade via windows-based software (ParaniUpdater)
- Easy to use Windows configuration tool available.
- ROHS compliant
